MIPS-processor

Verilog implementation of a 32 bit MIPS processor. This project started out as a lab assignment for SYSC 4310 (Computer Systems Architecture) Fall 2019. I’ve built on the initial lab assignment and adding more funtionality and ISA support as time permits.

Installation

1. Clone the repository or download files
2. Import source files into your favorite verilog simulator
3. Synthesize the design
4. Edit the test bench as necessary
5. Simulate

Design

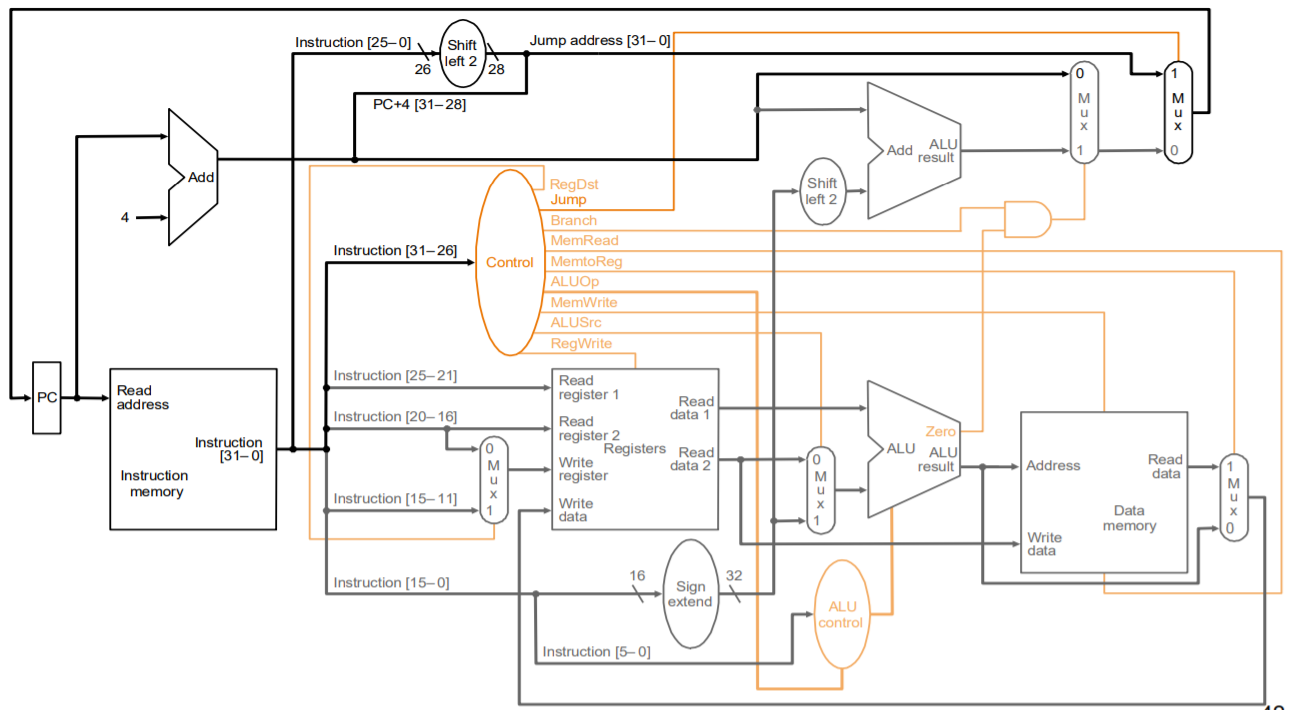

Implementation is based on this design

Testing

Test bench loads the following program into memory. Program calculates the fibonacci sequence

_main:
      lw $t0, 0($s4)
      lw $t1, 4($s4)

      add $t2, $t0, $t1

      sw $t1, 0($s4)
      sw $t2, 4($s4)

      j _main

Test bench terminates the program once we reach the largest unsigned 32 bit fibonacci number.

Result

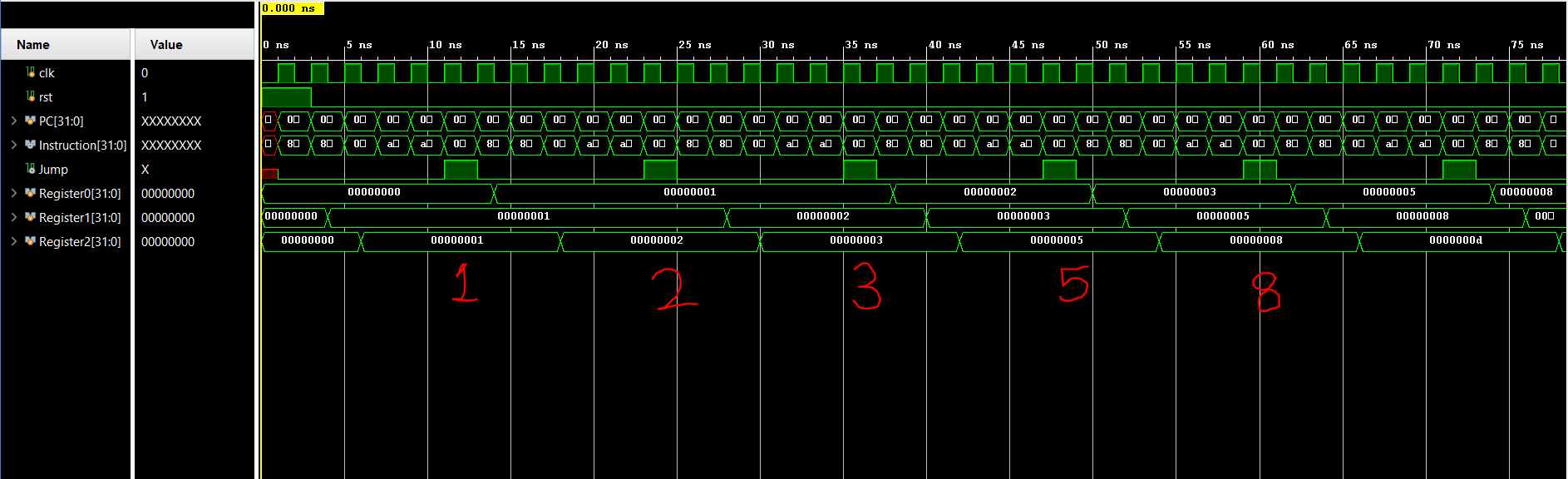

The beginning of the simulation And we stop when we reach the largest unsigned 32 bit number 0xB11924E1
